Dry-Type Transformer Specifications
09-20 2024 | By:

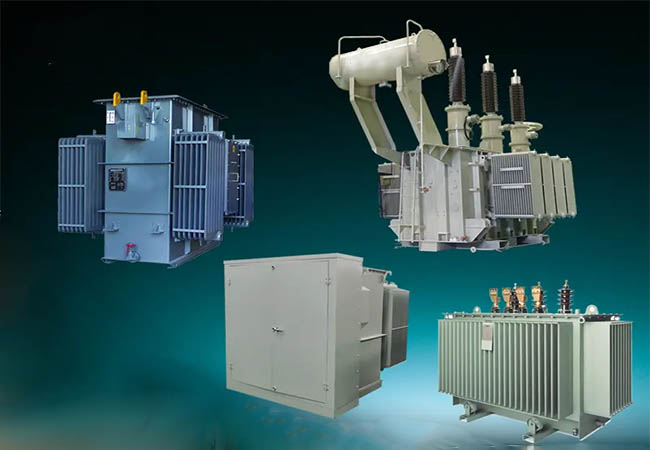

Transformer specifications
① According to voltage level: 1000KV, 750KV, 500KV, 330KV, 220KV, 110KV, 66KV, 35KV, 20KV, 10KV, 6KV, etc.
② According to insulation and heat dissipation medium: dry-type transformer, oil-immersed transformer, among which dry-type transformer is further divided into: SCB epoxy resin cast dry-type transformer and SGB10 non-encapsulated H-class insulation dry-type transformer.
③ According to core structure material: silicon steel laminated transformer, silicon steel coil core transformer, amorphous alloy core transformer.
④ According to design energy-saving sequence: SJ, S7, S9, S11, S13, S15.
⑤ According to the number of phases: single-phase transformer, three-phase transformer
Product details
Transformer specifications:
① According to voltage level: 1000KV, 750KV, 500KV, 330KV, 220KV, 110KV, 66KV, 35KV, 20KV, 10KV, 6KV, etc.
② According to insulation and heat dissipation medium: dry-type transformer, oil-immersed transformer, among which dry-type transformer is further divided into: SCB epoxy resin cast dry-type transformer and SGB10 non-encapsulated H-class insulation dry-type transformer.
③ According to the core structure material: silicon steel laminated transformer, silicon steel coil core transformer, amorphous alloy core transformer.
④ According to the design energy-saving sequence: SJ, S7, S9, S11, S13, S15.
⑤ According to the number of phases: single-phase transformer, three-phase transformer.
⑥ In terms of capacity, the rated capacity of transformers in my country is calculated according to the R10 priority coefficient, that is, multiples of 10 to the 10th power, 50KVA, 80KVA, 100KVA, 125KVA, 160KVA, 200KVA, 250KVA, 315KVA, 400KVA, 500KVA, 630KVA, 800KVA, 1000KVA, 1250KVA, 1600KVA, 2000KVA, 2500KVA, 3150KVA, 4000KVA, 5000KVA, etc.
Dry-type transformer specifications Main structure 1. The core is a step-type 45° full-bevel joint 2. Inter-turn, inter-layer, inter-segment insulation and insulation tubes are all used Insulation paper or molded parts 3. Low-voltage coil is foil type 4. High-voltage coil is continuous type 5. The body adopts special isolation and noise reduction measures
High-voltage coil High-voltage coil adopts a continuous structure with high mechanical strength and good heat dissipation conditions. The coil is wound on a molded insulating cylinder.
High-voltage coil uses insulating paper wrapped flat copper wire as conductor, and insulating paper is used between layers. The coil is impregnated into a solid whole by VPI vacuum pressure, avoiding the shortcomings of high interlayer voltage, poor heat dissipation, easy thermal breakdown, and low mechanical strength of multi-layer cylindrical coils, thereby improving the reliability of product operation; excellent moisture-proof performance, better able to withstand thermal shock, never crack, partial discharge <5Pc, easy to decompose and recycle after life, and protect the environment.
Low-voltage coil Low-voltage coil is a foil-wound structure. The coil is wound with high-quality copper foil and H-grade insulating material. The interlayer uses
Low-voltage coil insulating paper as the insulation system. The coil is impregnated into a solid whole by VPI vacuum pressure. Product structure features: 1. The coil has high mechanical strength and strong short-circuit resistance. 2. The coil has strong resistance to thermal shock and the product life is improved. 3. The coil has strong “moisture-proof, dust-proof and salt-fog-proof” capabilities.
The core material is made of 0.2mm thick high-quality high-magnetic conductivity silicon steel sheet with 45° full oblique overlap. The core adopts non-punching,
The core pull plate structure; the surface is coated with insulating paint, which is moisture-proof and rust-proof, with low loss and low noise. The operating noise is about 16db lower than the national standard, which can meet the national first-level residential area noise requirements.
