American box transformer composition and advantages and disadvantages
01-15 2025 | By:

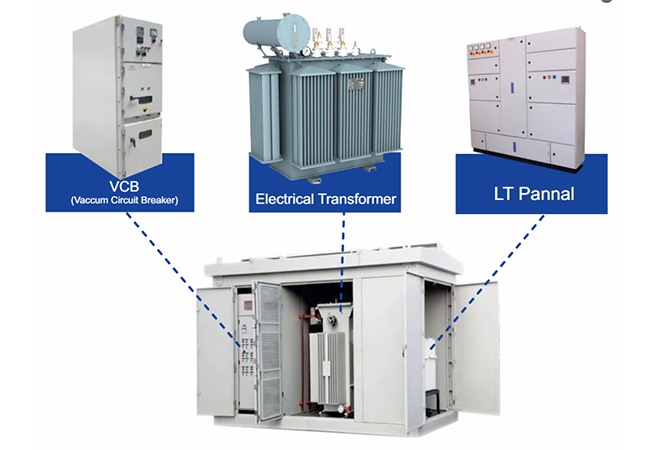

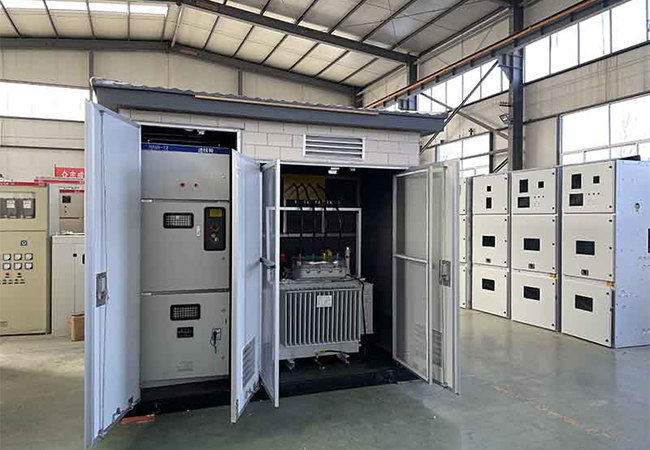

American box transformer is mainly composed of core components such as high-voltage side switch, disconnector, fuse, transformer body and low-voltage side switch. These parts work together to ensure the stable operation and efficient energy conversion of the transformer.
Transformer body: This is the core part of the American box transformer, including high-voltage winding, low-voltage winding, iron core, etc. The iron core is composed of silicon steel sheets and is the core of the transformer, responsible for energy conversion; high-voltage winding and low-voltage winding are important parts of the transformer responsible for energy conversion. In addition, the transformer body also has built-in high-voltage load switches, fuses and other equipment, which are placed in the oil tank to ensure the compactness and safety of the transformer.
High-voltage side components: High-voltage switchgear: used to control and protect the high-voltage side circuit, can cut off or connect the high-voltage power supply, quickly cut off the circuit in case of fault, and ensure system safety. Common high-voltage switchgear includes circuit breakers, disconnectors, etc.
Fuse: As a protective device for transformer short circuit and overload, it ensures that the circuit can be cut off in time under abnormal circumstances to prevent equipment damage.
Low-voltage side components:
Low-voltage switchgear: Responsible for the distribution, control and protection of low-voltage side power, such as fuses, contactors, etc., to transmit power to each power branch, while monitoring the circuit status, automatically cut off when overloaded or short-circuited, and maintain low-voltage power safety.
Molded case automatic air circuit breaker: Usually used for low-voltage side protection, with long-delay overload protection, short-circuit protection, ground fault protection and other functions.
Other components:
Inlet and outlet ports: Used to connect external circuits to ensure the input and output of power.
Cooling device: Such as heat sink, used to dissipate the heat generated during the operation of the transformer to ensure the stable operation of the equipment.
Support frame: Provide stable support for the transformer to ensure the safety and stability of the equipment1.
Handle, instrument and protection: such as load switch handle, oil level gauge, oil temperature gauge, etc., used to monitor and control the operating status of the transformer.
Advantages and disadvantages of American box transformers
One of the biggest advantages of American box transformers is its high efficiency. It uses advanced technology and design to convert input voltage into output voltage suitable for different purposes to meet the needs of different equipment. This high efficiency helps save energy and reduce costs, which is especially important for equipment that is used for a long time. American box transformers also have lower energy losses, making energy more efficiently transmitted and distributed.
Another noteworthy advantage is the reliability of American box transformers. This equipment undergoes strict quality control and testing to ensure that it can operate stably under various working conditions. Since box transformers play a vital role in energy supply, reliability is essential to ensure continuous and reliable power supply. The reliability of American box transformers also makes it perform well in the case of sudden power demand and can provide reliable power output.
American box transformers also have a smaller size and weight, making them easier to install and maintain. Compared with traditional transformers, box transformers take up less space and are lighter, which makes the installation process more convenient. Due to its compact size, the American-style box transformer is also easier to maintain and move, which is especially important for those scenarios where the box transformer is often needed in different locations.
There are also some disadvantages of the American-style box transformer, one of which is the high price. Due to its advanced technology and design, the manufacturing cost of the American-style box transformer is relatively high, resulting in a relatively high selling price. This may limit the choice range of some users with limited budgets. However, considering its high efficiency and reliability, the price of the American-style box transformer can be considered good value for money.
The American-style box transformer may also produce some noise to the environment. Due to its working principle and component structure, the box transformer may produce humming or noise during operation. This may cause some trouble for some places that are sensitive to environmental noise, such as residential areas or office environments. With the advancement of technology, modern American-style box transformers have added some noise reduction measures and have made significant progress in reducing noise.
As a widely used device in energy transmission and distribution systems, the American-style box transformer has many advantages and some disadvantages. Its high efficiency, reliability and convenience make it the first choice for many users. The disadvantages of high price and possible noise also need to be considered by users when choosing. Nevertheless, by weighing these factors, the American box transformer is still a very valuable device that plays an important role in meeting the needs of different users and improving energy efficiency.
