Rated voltage | 380V |
---|---|
Rated Frequency | 50Hz |
Application scenarios | Widely used in power plants, substations, factories and mining enterprises |

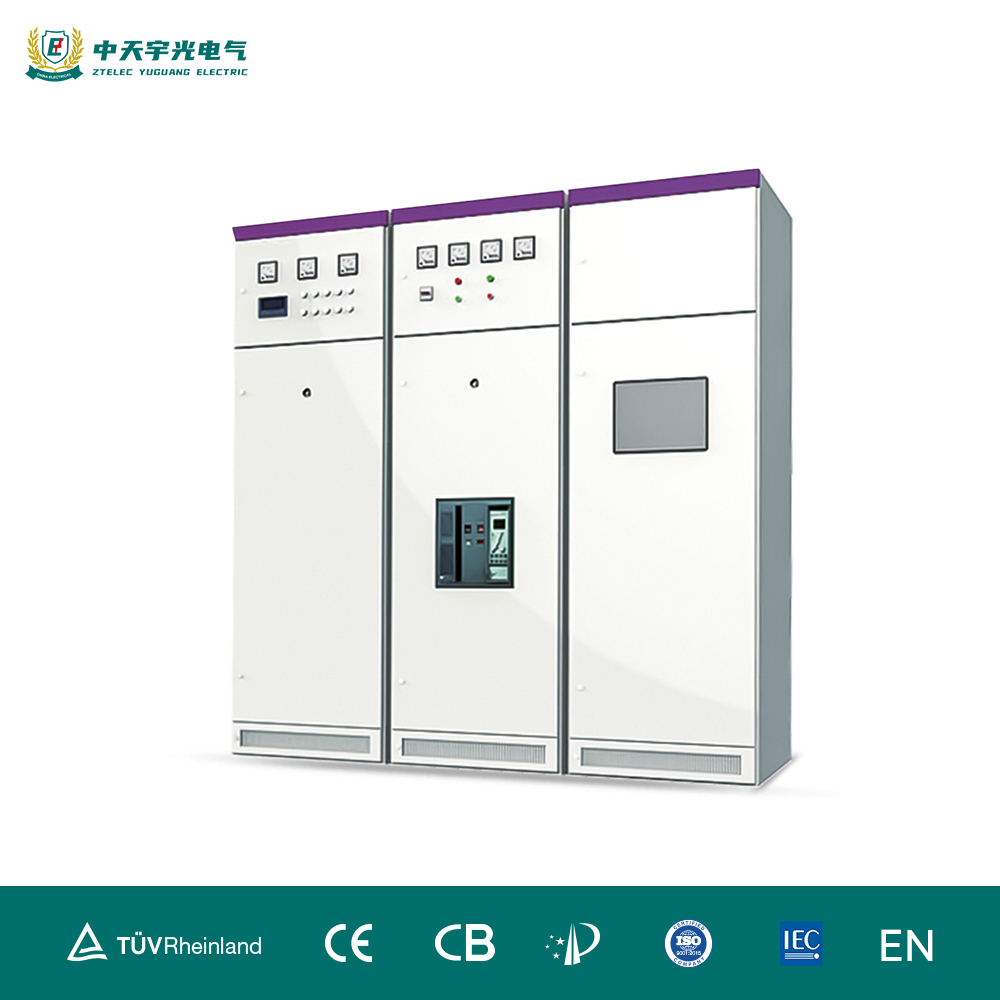

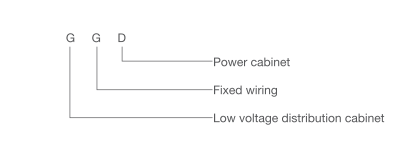

GGD AC LV fixed type switchgear is applicable to the distribution system with AC 50Hz,rated working voltage of 380V, rated current up to 3150A in power stations,substations,plant enterprises etc.,used for power transfer,distribution,and control for power,lighting,and distribution devices.
+Fully consider the heat dissipation during cabinet running,heat dissipation slots of different quantities are punched accordingly on the top and bottom of the cabinet.
+The body of GGD AC LV power distributing cabinet adopts a universal cabinet type.The framework is assembled with 8MF cold bending profile steel through partial welding.Framework components and special mating components are provided by asigned profile steel manufacturer to ensure the precision and quality of cabinet.Components of the universal cabinet are designed according to the module principle with 20 modulus mounting holes and high universal coefficient.
+The cabinet door is connected to the framework with a rotation axis type movable hinge,with convenient installation and disassembly.One E-type rubber strip is set in the edge fold of the door.The filler rod between the door and the framework has a certain compression stroke when closing the door.It can prevent the door from collision with the cabinet directly and it also increases the protection level of the door.
+Connect the meter gate set with electrical components to the framework with multistrand soft copper wire.Connect the mounting pieces inside the cabinet with the framework with knurled screws.The whole cabinet constructs a complete earthing protective circuit.
+The top cover of the cabinet can be disassembled if necessary for convenient assembly and adjustment of main busbar on site.Four corners of cabinet are equipped with lifting lugs for hoisting and shipping.Protection level of the cabinet: IP30.The user can choose from IP20-IP40 according to environmental requirements.
a Ambient air temperature:-5°℃~+40℃ and the average temperature ≤+35°C in 24h.
b Installed and used indoor.Altitude above sea level for operation site 2000m.
C Relative humidity should not exceed 50%at max temperatures +40°℃.Higher relative humidity is allowed at lower temperature,eg.90%at+20°℃.But in view of the temperature change,it is possible that moderate condensation will be produced casually.
d Installation gradient should not exceed 5° .
e Installed in places free of fierce vibration and impact and where electrical components wouldn’t be eroded.
Any specific requirements,please consult with manufacturer.
