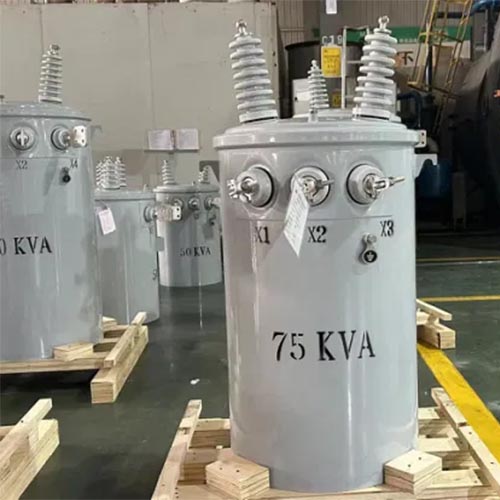

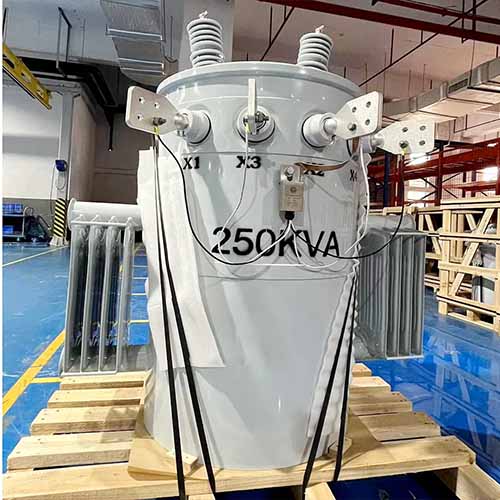

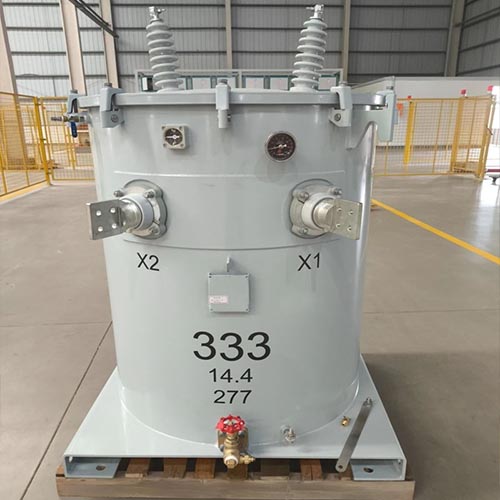

Single Phase Transformer

Rated voltage	6kV-11kV
Rated capacity	50/100/167/250/333kVA
Application scenarios	Power distribution places such as industrial and mining enterprises, agriculture, and civil buildings, as well as places with a lot of oil pollution and chemical substances in the petroleum and chemical industries.

Rated voltage

6kV-11kV

Rated capacity

50/100/167/250/333kVA

Application scenarios

Power distribution places such as industrial and mining enterprises, agriculture, and civil buildings, as well as places with a lot of oil pollution and chemical substances in the petroleum and chemical industries.

Overview

The single phase transformers are specifically designed for the decentralization distribution network of servicing residential overhead distribution loads of town and countryside. They are also suitable for light and diversified power applications.These transformers are designed for the application conditions normally encountered in electric utility power distribution systems.We offer two kinds of metal core types for 2 basic transformer types:conventional type and complete self protect type. Two types of materials are available:CRGO iron core and amorphous Iron core.

Features

+ Meet or exceed ANSL standard, IEC standard, GB standard and SANS standard;
+ Safe running, installation and operation;
+ Excellent modern appearance;
+ High security and reliability in operation;
+ High capacity of overload and high efficiency;
+ Higher system reliability;
+ Fully-sealed;
+ Reasonable structure;
+ Robust construction, excellent short circuit resistance and high temperature resistance;

Performance parameters

Rated capacity (kVA)	Voltagegroup		Vector group	mpedance voltage (%)	Loss (W)		No-load current (%)	Weight(kg)			Boundary dimension (L×W×H,mm)	Gauge vertical/ Horizonta
Rated capacity (kVA)	HV (kV)	LV(kV)	Vector group	mpedance voltage (%)	No-load loss	Load loss	No-load current (%)	Body weight	Oil weight	Gross weight	Boundary dimension (L×W×H,mm)	Gauge vertical/ Horizonta
5	11 10.5 10 6.3 6	0.22 0.24	LiO Li6	3.5	35	145	4	50	40	130	530450850	400/250
10					35	260	3.5	65	40	150	560450870	400/300
16					65	365	3.2	80	40	180	600450920	400/300
20					80	430	3.0	100	50	205	620450940	400/300
30					100	625	2.5	115	50	225	700450980	400/300
40					125	775	2.5	150	55	270	7004801040	400/300
50					150	950	2.3	175	70	310	6505101100	400/300
63					180	1135	2.1	190	80	340	6605201100	400/300
80					200	1400	2.0	240	100	420	7705301120	400/300
100					240	1650	1.9	295	100	490	8406001150	400/300
125					285	1950	1.8	370	110	560	8907401160	500/400
160					365	2365	1.7	430	130	650	9507901170	500/400
